Page 16 - Catalogue 2019

WAFER TYPE BUTTERFLY VALVE Z 011-AS WAFER TYPE BUTTERFLY VALVE Z 011-AS

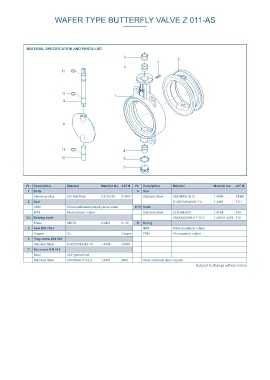

MATERIAL SPECIFICATION AND PARTS LIST
ØF ØF
□G G 3
H 1 7 2
H 2 4
11

A Optional shaft end: 11
Double flat acc. to 1
EN ISO 5211 9

C
Ø Di
ØD Z 8

B

11 4
10 5
6
Z 011-AS with bare shaft end according to EN ISO 5211 E

Dimensions [mm] Pt. Description Material Material-No. ASTM Pt. Description Material Material-No. ASTM
DN Size Weight 1 Body 8 Disc
[mm] [in] A B C D Di E F Flange G H1 H2 Z [kg] Aluminiumalloy GD-AlSi9Cu3 3.2163.05 B 380.1 Stainless Steel X6CrNiMo18-10 1.4408 CF8M
50 2 126 84 210 95 48,5 43 54 F04 11 12 19 25 1,1 2 Seat G-X2CrNiMoN26-7-4 1.4469 F 51
65 2½ 134 93 227 115 63,5 46 54 F04 11 12 19 45 1,4 CSM Chlorosulfonated polyethylene rubber 9/10 Shaft
80 3 157 104 261 131 78,5 46 65 F05 14 16 25 65 1,9 FPM Fluorocarbon rubber Stainless Steel X14CrMoS17 1.4104 430
100 4 167 115 282 151 98,5 52 65 F05 14 16 25 85 2,4 3/4 Bearing bush X5/(X2)CrNiMo17-12-2 1.4401/1.4404 316
125 5 180 127 307 182 123,5 56 65 F05 14 16 25 111 3,2 Brass MS 58 2.0401 B 45 11 O-ring
150 6 203 150 353 200 141,6 56 90 F07 17 19 30 130 4,6 5 Seal DIN 7603 NBR Nitrile butadiene rubber
200 8 228 176 404 260 199 60 90 F07 17 19 30 190 6,8 Copper Cu Copper FPM Fluorocarbon rubber
250 10 266 212 478 316 248 68 125 F10 22 24 39 240 12,6 6 Plug screw DIN 908
300 12 291 237 528 360 281,1 78 125 F10 22 24 39 270 17,5 Stainless Steel G-X5CrNiMo18-10 1.4408 CF8M
For larger diameters:, see Z 011-A (Aluminium version) Subject to change without notice 7 Set screw DIN 915
Steel 45 H galvanized
Stainless Steel X5CrNiMo17-12-2 1.4401 B8M Other materials upon request
Subject to change without notice
