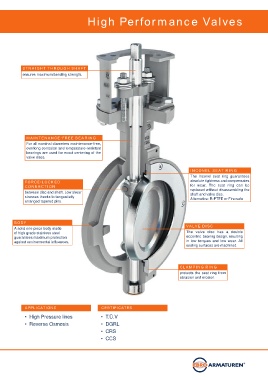

High Performance Valves

STRAIGHT THROUGH SHAFT
ensures maximum bending strength.

MAINTENANCE-FREE BEARING
For all nominal diameters maintenance-free,
overlong corrosion and temperatur e-resistant
bearings are used for exact centering of the
valve discs.

INCONEL SEAT RING
The Inconel seat ring guarantees
FORCE-LOCKED absolute tightness and compensates
CONNECTION for wear. The seat ring can be
between disc and shaft. Low shear replaced without disassembling the
shaft and valve disc.
stresses thanks to tangentially Alternative: R-PTFE or Fire-safe
arranged tapered pins.

BODY
A solid one piece body made VALVE DISC
of high grade stainless steel The valve disc has a double
guarantees maximum protection eccentric bearing design, resulting
against environmental infl uences. in low torques and low wear. All
sealing surfaces are machined.

CLAMPING RING
protects the seat ring from
abrasion and erosion.

APPLICATIONS CERTIFICATES
• High Pressure lines • T.Ü.V
• Reverse Osmosis • DGRL
• CRS
• CCS
